Hot insulation

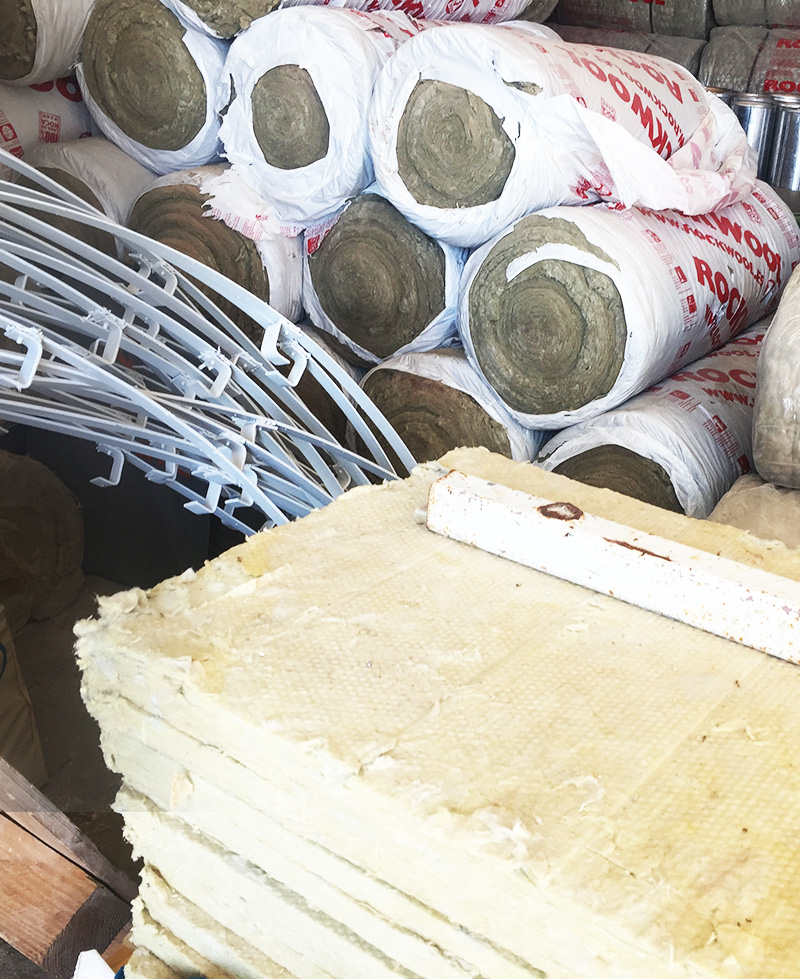

rockwool wired blanket

Applications

Rockwool is a lightly bonded rock wool mat stitched on Galvanized wired mesh with galvanized wire. The wired mat is suitable for thermal and acoustic insulation of industrial Pipe work, boiler walls, furnaces and industrial smoke Exhaust ducts

Advantages

• Excellent thermal and acoustic insulation
• Suitable for use over irregular surfaces
• Available in a wide range of thickness up to 120
• Suitable for use over stainless steel.

Usage

1- Boiler & turbine
2- Pipeline
3- furnaces & chimney

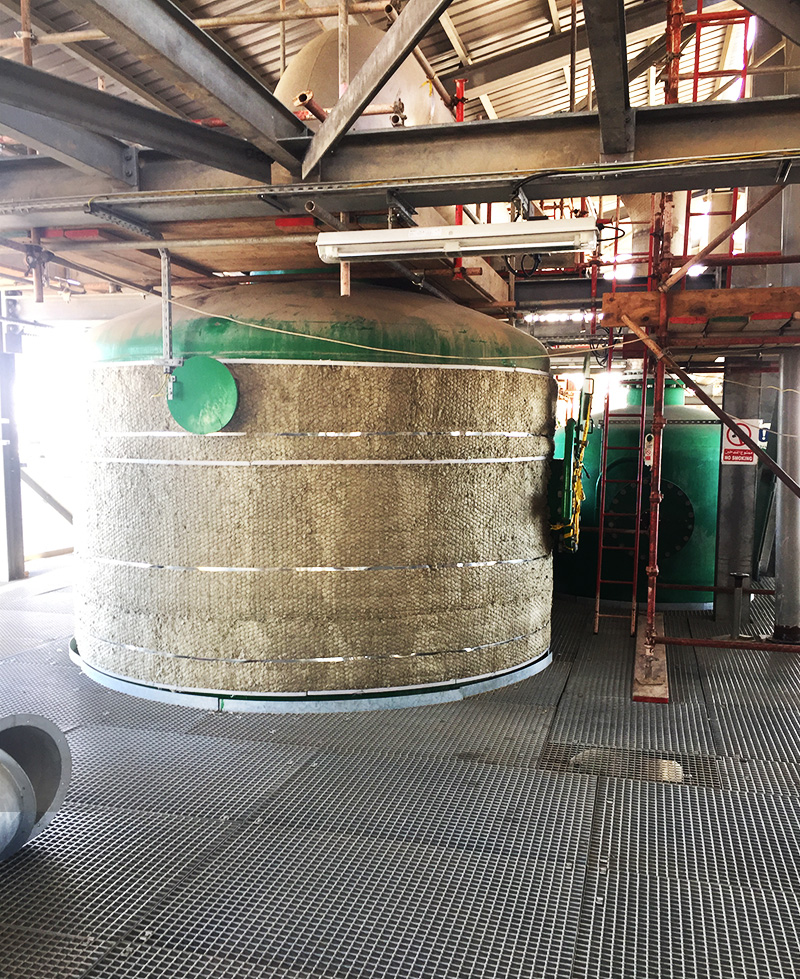

4- tanks & vessels

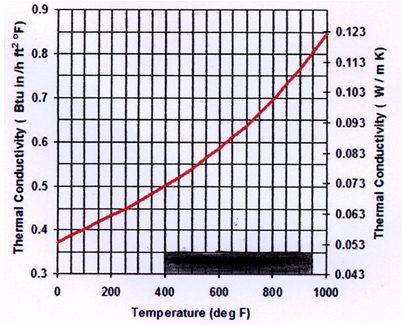

Technical properties

This product available in different thickness & different density Available with aluminum foil cover also Different country origin (Holland – Egyptian – Saudi –turkey) This table granted result for lapinus product (Holland) recommended product

Pipe section

Application

Pre-formed stone wool pipe section. The sections are supplied split and hinged for easy snap-on Assembly, and are suitable for the thermal and acoustic Insulation of industrial pipe work.

Advantage

• Excellent thermal and acoustic insulation
• Easy to handle and install
• Wide range of diameters and insulation thicknesses
• Optimal performance due to the extensive range of diameter
• Suitable for use over stainless steel
• Long lasting
• Excellent provides optimal performance

Technical properties

Pipe section insulation available up 24 inch over 24 blanket will applied Also available in density ( 140 kg/ m3 ) This table granted result for lapinus product (Holland) recommended product

Rock wool board

Applications

Rockwool board is a strong, rigid board for the thermal and Acoustic insulation of constructions where higher temperature - And light mechanical loads (e.g. vibrations) occur

Advantages

• Excellent thermal and acoustic insulation
• Suitable for high temperature applications
• Retains shape
• Long lasting

Usage

1- Boiler & turbine
2- Roofs & wall
3- Furnaces & chimney

Technical properties

This product available in different thickness & different density Different country origin This table granted result for lapinus product (Holland) recommended product

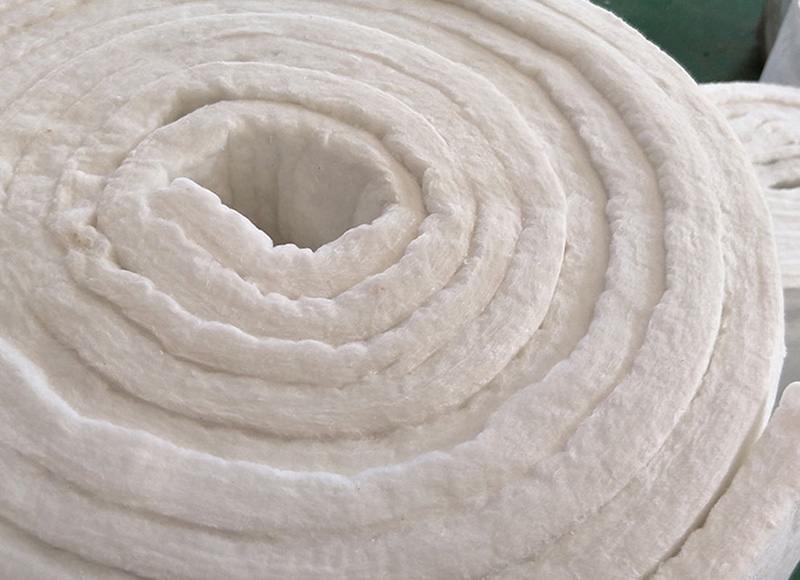

Ceramic fiber

Blanket resists temperature as high as 2300º. This material is lightweight and has very low thermal conductivity, excellent handling strength, low heat storage, thermal shock resistance and corrosion resistance (commonly used acid and alkali). It also provides excellent sound absorption and excellent fire protection. (Available in different thickness & density)

Typical Applications

• Repair, insulation and linings for furnaces, kilns, generators, reformers, boilers, etc.
• Insulation for steam and gas turbines, and other high temperature equipment
• Insulation for nuclear applications and power plants
• High-temperature pipe insulation, casting mold insulation, etc.
• High-temperature seals and gasketing, furnace door seals, expansion joint seals
• Fire protective insulation or linings
• High-temperature filtration

Calcium Silicate

Non-asbestos insulation board and pipe insulation feature with light weight, low thermal conductivity, high temperature and chemical resistance. Calcium Silicate is rigid, high density material used for high temperature applications ranging 250 oF (121)
