Cold insulation
Polyurethane (foam)

Polyurethane is an organic polymer formed by reacting a polyol (an alcohol with more than two reactive hydroxyl groups per molecule) with a diisocyanate or a polymeric isocyanate in the presence of suitable catalysts and additives. Polyurethanes are flexible foams used in mattresses, chemical-resistant coatings, adhesives and sealants, insulation for buildings and technical applications like heat exchangers, cooling pipes and much more. Relationship between temperature and thermal conductivity is indicated in the diagram below: Available in pipe section – board – ( or by injection )

Glass wool

This product used for cold –hot & anti sweat insulation but in small temperature range It's made from molten glass spun into microfibers. Also this kind available in (slabs –blanket – pipe section) with & without aluminum foil cover //available in different country origin (turkey – Kuwait)

Usage

1- central air –condition ducts
2- chilled water pipeline
3- roofs & wall for building

Sandwich panels

It is lightly weight compound by injecting polyurethane inside galvanized sheet easy used for structure

Usage

1- Storage room
2- Roofs
3- Big refrigerators

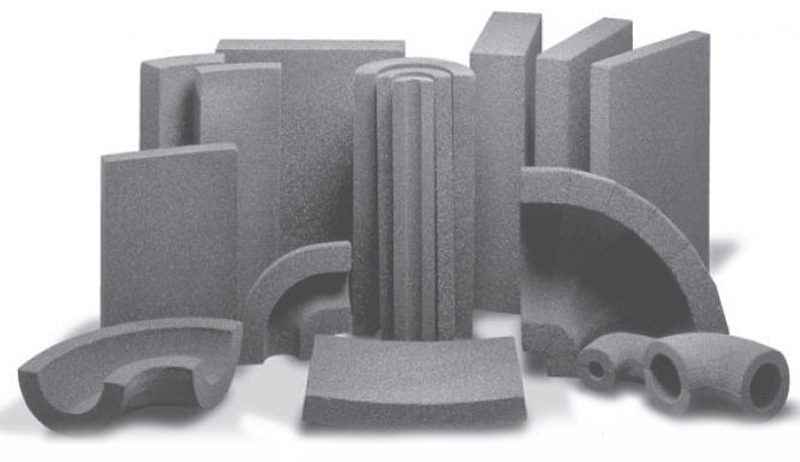

Cellular glass

Applications

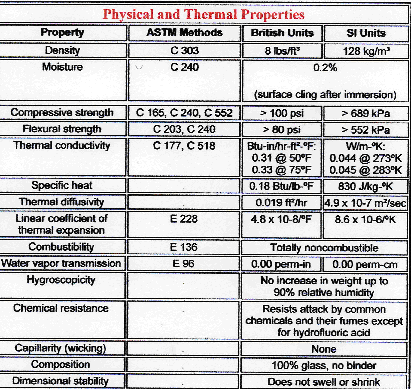

Cellular glass insulation is composed of crushed glass combined with a cellulating agent. These components are mixed, placed in a mold, and then heated to a temperature of approximately 950 oF. During the heating process, the crushed glass turns to a liquid. Decomposition of the cellulating agent will cause the mixture to expand and fill the mold. The mixture creates millions of connected, uniform, closed-cells and form at the end a rigid insulating material. Low tempreturace range to 260 oC) and high tem rang to 480 oC)

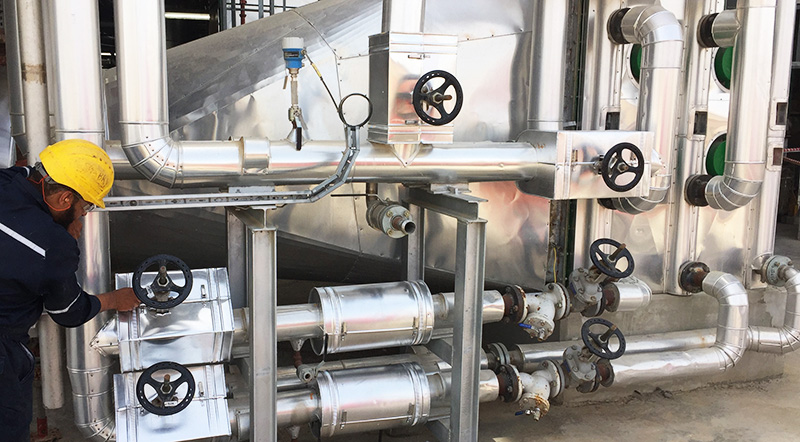

Cladding

Metallic cladding

Cladding is Avery important and critical point in insulation work In order to securing insulation material from damage – safety precaution – personal protection and final decorative view Metallic Cladding May used several material (stainless steel – aluminum – galvanized sheet – aluzinc )

Non metallic cladding

Our continuous product development programme has created a highly cost-effective, world-leading, non-metallic thermal insulation cladding system -. It's the ideal solution for protecting thermal and acoustic insulation systems, especially in exposed environments. Protection sheet polymeric compound for application over thermal insulation to any pipe or vessel arrangement. Protection sheet cladding is rendered completely weatherproof .

Cladding accessories
Cladding accessories is very important in order to securing material
1- stainless steel bands
2- stainless steel clips
3- toggle latches
4- mastic
5- screw
6- tape
